HL1560T Longhole Rock Drills OMT 400 OMT 500 200 Bar

Product Categories
Xi'an Huizhong Mechanical Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

HL1560T Longhole Rock Drills OMT 400 OMT 500 200 Bar

Model Number : HL1560T

MOQ : 1PCS

Price : Price negotiations

Payment Terms : T/T

Supply Ability : 1+PCS+20 work days

Delivery Time : 20 work days

Packaging Details : wooden box package

Hole diameter range : 89 - 127 mm (with rods) 89 - 152 mm (with tube rods)

Kinetic power : 33 kW

Percussion rate : 30 - 40 Hz

Operating pressure Percussion Rotation : 90 - 200 bar 200 bar

Rotation motor type : OMT 400, OMT 500

Drill steels : T51, ST58, GT60, ST68

Contact Now

HL1560T hydraulic rock drill designed 89 - 152 mm (3½ - 6 inches) deep hole drilling and ground design

Product feature of  Rock Drills

HL1560T is a heavy hydraulic percussive rock drill with independent rotation and separate flushing, which ensures high reliability. It is equipped with hydraulic actuator (stabilizer") to control contact between drill bit and rock which ensures optimal drilling performance and high rock tool service life.

Different rock drill versions are available through optional module offering: flushing device for tube drilling, T51 rods and GT60 rods; power extractor for tubes and rods and alternative rotation motor displacements and the design is covered by several patents.

Product data of  Rock Drills

Technical data
Hole diameter range 89 - 127 mm (with rods)
89 - 152 mm (with tube rods)
Power class 33 kW
Percussion rate 30 - 40 Hz
Operating pressure
Percussion
Rotation		 90 - 200 bar
200 bar
Rotation motor type OMT 400, OMT 500
Drill steels T51, ST58, GT60, ST68
Shanks
65 mm rods
80 mm rods
80 mm rods
80 mm rods		 T51 / ST58 / GT60 - 760
GT60 - 760
ST68 - 630
ST58 / ST68 - 635
Weight 470 - 490 kg





HL1560T Longhole Rock Drills OMT 400 OMT 500 200 Bar


Product Tags:

HL1560T Rock Drills



OMT 500 longhole drills



longhole drills 200 bar


Buy cheap HL1560T Longhole Rock Drills OMT 400 OMT 500 200 Bar product

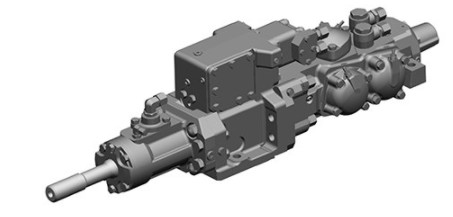

HL1560T Longhole Rock Drills OMT 400 OMT 500 200 Bar Images
